Slide Wont Slide

🚐 Schwintek Slide Stuck? Here's What Happened on This Motorhome Call

RV Type: 2021 Thor Windsport 35M Motorhome
Service Date: May 13, 2025
Issue: Schwintek slide-out wouldn’t retract

🔎 The Problem

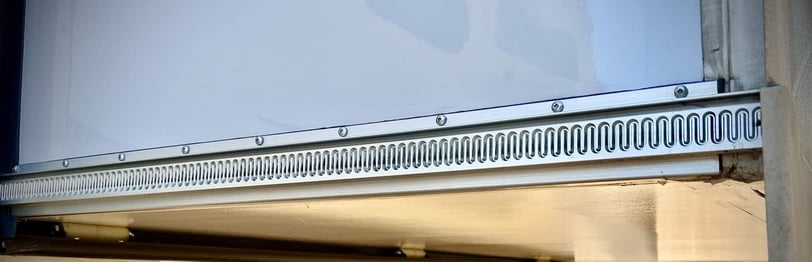

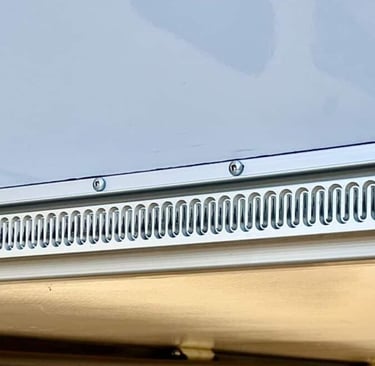

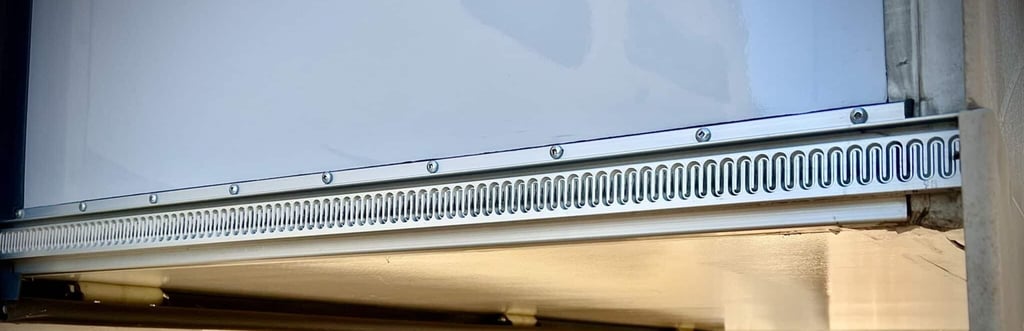

A customer contacted me because the slide-out on their Windsport Class A motorhome wouldn’t retract. It’s equipped with a Schwintek in-wall slide system—a reliable design, but one that can be sensitive if things get out of alignment.

After arriving onsite, I made sure the basics were covered: ignition on, parking brake set, and watched the owner attempt to retract the slide. One motor made a brief sound, then stopped—no movement.

🧰 Diagnosis

I located the Schwintek control module and attempted a soft system reset—pressing the button six times, then holding it on the seventh press until the LEDs blinked. Even after the reset, the slide still wouldn’t budge.

At that point, I suspected the motors weren’t failing—they were simply encountering resistance. I confirmed this by measuring 12 volts output at the slide controller itself. I reassembled everything and asked the customer to press the retract button while I applied gentle pressure to the outside of the slide. That did the trick—it began moving, and once started, it retracted smoothly under its own power.

The customer then shared something important: he had moved the motorhome a few feet the day before while the slide was still out. That likely caused the slide to shift just enough to bind the system, preventing the motors from engaging properly.

✅ The Fix

No parts were needed in this case—just careful diagnostics and a physical assist to overcome the slide’s initial resistance. Once realigned, the system worked as intended.

🧠 Technician’s Note

Schwintek slide systems are engineered for precision movement. Even a small misalignment—such as moving the RV with the slide extended—can cause them to jam or fail to operate. If you hear the motor click or strain but nothing moves, don’t force it. You might just need a skilled nudge and a reset.
